Product description

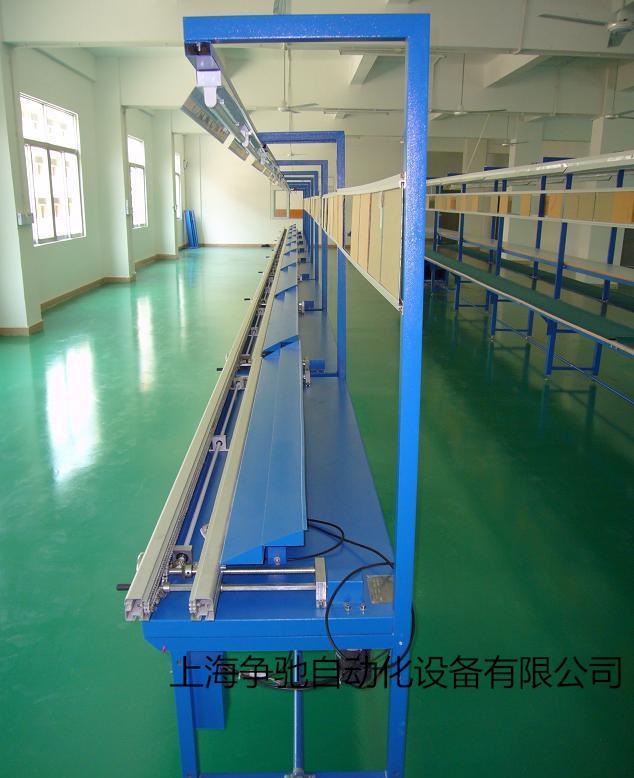

Plug-in line, mainly in the form of: one-sided plug-in conveyor, bilateral type plug-in conveyor, straight line type plug-in conveyor, circular plug-in conveyor, inclined plane type plug-in conveyor, rotation shift load type plug-in conveyor.

Plug in pipeline transportation is by a chain or a guide rail, circuit board for delivery to different stations, and completed the production of electronic components, plug-ins and detection process conveying equipment, because of the characteristics of the assembly line and improve the production efficiency, and the downhill section, the shifting and loading machine and other equipment, realize and wave soldering, welding line automatic transfer function. Minghe company design and manufacture of the plug-in line using special aluminum production, easy installation, beautiful structure, low noise, smooth operation, adjust the width of a convenient and consistent, very easy to change line converting. Plug line manufactured by our company are widely used in: household appliances, electrical appliances, electronics, auto parts, hardware, communication, daily necessities, lighting, toys and other electronic, electrical industry. The circuit board plug-in line downhill section is a bridge between plug-in lines and wave soldering, the circuit board can smoothly transported to wave soldering machine, and then transported out. Circuit board testing, welding line is through the chain or the guide rail, the circuit board is continuously transported to the different stations, and the completion of the electronic plug-in, welding and testing procedures in the production of transportation equipment.

On a single line of plug-in body length is usually: 2 meters, 2.4 meters, 3 meters, 3.8 meters, 4 meters, the height of the line is generally: 750mm (SIT), 1000-1100mm Rupa (standing). The plug-in conveyor each line body can be lengthened and the end of the turn, configuration of transplanting mechanism can be reversed and the connection body.

The motor power is usually a single plug-in line are: 40W, 60W, 90W. The use of power in the transmission speed of 0.5-3 M / min adjustable: 220V 50HZ.

A plug-in conveyor line main features:

1, according to the requirements of customers design, manufacture, installation, is widely used in the electronics industry.

2, an annular automatic plug-in line combination and configuration can be any change, speed available frequency control knob to adjust the required conveying speed and line width can be with the PCB width can be adjusted at any time. The line is composed of aluminum alloy materials.

3, ring plug-in line body friction is small, no noise, no pollution to the PCB plate conveyor.

4, beautiful appearance, compact, convenient operation and maintenance.

Two, the main structure of plug-in conveyor line:

1, the special Aluminum Alloy guide, with special nylon chain conveyor.

2, the line width and the wire rod amplitude modulation mechanism can be adjusted according to the width of the PCB board.

3, the friction between the body and the product line is very small, no noise, so it has no effect on the transport of PCB plate.

4, can be used alone, can also be used with the solder connection. The first is a PCB plugin.

5, the entire line body appearance, simplicity, simple operation, convenient maintenance.

6, according to the requirements of customers to design, manufacture and installation. So it is widely used in electronic industry.
